UCS-FI-6296UP Issue: need to upgrade to ver 4.1(1d)A New unit have version 2.1(3a)

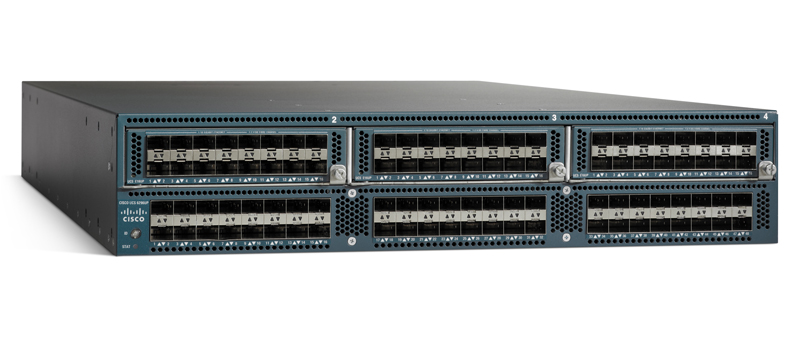

PID: UCS-FI-6296UP

Issue: need to upgrade to ver 4.1(1d)A

New unit have version 2.1(3a)

According to upgrade matrix, it needs to upgrade to 2.2(8m) first

Via GUI

While login in, having issue with authentication

Java issue

( Java issue )

Workaround: Rollback Java 7 to Update 25 or lower

Uninstall others java version

Upgrading to 2.2(8m)

Upload, activated

Upgrading ver 4.1(1d)A

Upload, activated

Erase config

Rack4-A# show version

System version: 2.0(1w)

Rack4-A# connect local-mgmt

Cisco Nexus Operating System (NX-OS) Software

TAC support: http://www.cisco.com/tac

The copyrights to certain works contained in this software are

owned by other third parties and used and distributed under

license. Certain components of this software are licensed under

the GNU General Public License (GPL) version 2.0 or the GNU

Lesser General Public License (LGPL) Version 2.1. A copy of each

such license is available at

http://www.opensource.org/licenses/gpl-2.0.php and

http://www.opensource.org/licenses/lgpl-2.1.php

Rack4-A(local-mgmt)# erase configuration

All UCS configurations will be erased and system will reboot. Are you sure? (yes/no):yes

Removing all the configuration. Please wait....

/bin/rm: cannot remove directory `/bootflash/sysdebug//tftpd_logs': Device or resource busy

Configurations are cleaned up. Rebooting....

+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++

FI is ready with 4.1(1d)A
